Project architecture

This project is organized around centralizing data in a Snowflake cloud data warehouse. Heterogeneous data sources are loaded into raw databases using custom Python scripts. These datasets are then transformed into analysis-ready marts using dbt.

We follow an adapted version of the project architecture described in this dbt blog post for our Snowflake dbt project.

It is described in some detail in our Snowflake docs as well.

flowchart TB
subgraph External Data Source
    direction TB
    DS1[(Data Source 1)]
    DS2[(Data Source 2)]
    DS3[(Data Source 3)]
  end
  PY>Python scripts]
  F>Fivetran]
subgraph AWS
  direction TB
  A[\AWS S3 Bucket/]
  subgraph ODI Snowflake
    subgraph PRD
        direction TB
        RP[(RAW_PRD)]
        TP[(TRANSFORM_PRD)]
        AP[(ANALYTICS_PRD)]
    end
    subgraph DEV
        direction TB
        RD[(RAW_DEV)]
        TD[(TRANSFORM_DEV)]
        AD[(ANALYTICS_DEV)]
    end
  end
end
P{{Reporting tool e.g. PowerBI or Tableau}}

F -- LOADER_PRD --> A
A -- Data Pipelines --> RP
RD -- TRANSFORMER_DEV --> TD
TD -- TRANSFORMER_DEV --> AD
RP -- TRANSFORMER_PRD --> TP
TP -- TRANSFORMER_PRD --> AP
RP -- TRANSFORMER_DEV --> TD
AD -- REPORTER_DEV --> P
AP -- REPORTER_PRD --> P
DS1 --> PY
DS2 --> F
DS3 --> F
PY --> RP
PY --> RD
F --> RP
F --> RD

Snowflake architecture

There are two environments set up for this project, development and production. Resources in the development environment are suffixed with DEV, and resources in the production environment are suffixed with PRD.

Most of the time, developers will be working in the development environment. Once your feature branches are merged to main, they will be used in the production environment.

What follows is a brief description of the most important Snowflake resources in the dev and production environments and how developers are likely to interact with them.

Six databases

We have six primary databases in our project:

Where our Source data lives

• RAW_DEV: Dev space for loading new source data.
• RAW_PRD: Landing database for production source data.

Where data from our Staging and Intermediate models lives

• TRANSFORM_DEV: Dev space for staging/intermediate models. This is where most of your dbt work is!
• TRANSFORM_PRD: Prod space for models. This is what builds in the nightly job.

Where data from our Marts models lives

• ANALYTICS_DEV: Dev space for mart models. Use this when developing a model for a new dashboard or report!
• ANALYTICS_PRD: Prod space for mart models. Point production dashboards and reports to this database.

Six warehouse groups

There are six warehouse groups for processing data in the databases, corresponding to the primary purposes of the above databases. They are available in a few different sizes, depending upon the needs of the the data processing job, X-small denoted by (XS), Small (denoted by S), Medium (denoted by M), Large denoted by (L), X-Large denoted by (XL), 2X-Large (denoted by 2XL), 3X-Large (denoted by 3XL) and 4X-Large (denoted by 4XL). Most jobs on small data should use the relevant X-small warehouse.

Following is a general guideline from Snowflake for choosing a warehouse size.

X-Small: Good for small tasks and experimenting. Small: Suitable for single-user workloads and development. Medium: Handles moderate concurrency and data volumes. Large: Manages larger queries and higher concurrency. X-Large: Powerful for demanding workloads and data-intensive operations. 2X-Large: Double the capacity of X-Large. 3X-Large: Triple the capacity of X-Large. 4X-Large: Quadruple the capacity of X-Large.

1. LOADING_{size}_DEV: This warehouse is for loading data to RAW_DEV. It is used for testing new data loading scripts.
2. TRANSFORMING_{size}_DEV: This warehouse is for transforming data in TRANSFORM_DEV and ANALYTICS_DEV. Most dbt developers will use this warehouse for daily work.
3. REPORTING_{size}_DEV: This warehouse is for testing dashboards.
4. LOADING_{size}_PRD: This warehouse is for loading data to RAW_PRD. It is used for production data loading scripts.
5. TRANSFORMING_{size}_PRD: This warehouse is for transforming data in TRANSFORM_PRD and ANALYTICS_PRD. This warehouse is used for the nightly builds.
6. REPORTING_{size}_PRD: This warehouse is for production dashboards.

Six roles

There are six primary functional roles:

1. LOADER_DEV: Dev role for loading data to the RAW_DEV database. This is assumed when developing new data loading scripts.

2. LOADER_PRD: Prod role for loading data to the RAW_PRD database. This is assumed by data loading scripts.

3. TRANSFORMER_DEV: Dev role for transforming data. This is you! Models built with this role get written to the TRANSFORM_DEV or ANALYTICS_DEV databases. CI robots also use this role to run checks and tests on PRs before they are merged to main.

4. TRANSFORMER_PRD: Prod role for transforming data. This is assumed by the nightly build job and writes data to the TRANSFORM_PRD or ANALYTICS_PRD databases.

5. REPORTER_DEV: Dev role for reading marts. Use this when developing new dashboards. This role can read models in the ANALYTICS_DEV database.

6. REPORTER_PRD: Prod role for reading marts. This is for users and service accounts using production dashboards. This role can read models in the ANALYTICS_PRD database.

Reporting and analysis

The most prominent consumers of the data products from this project are PowerBI and Tableau dashboards and the CalInnovate team.

Custom schema names

dbt's default method for generating custom schema names works well for a single-database setup:

• It allows development work to occur in a separate schema from production models.
• It allows analytics engineers to develop side-by-side without stepping on each other's toes.

A downside of the default is that production models all get a prefix, which may not be an ideal naming convention for end-users.

Because our architecture separates development and production databases, and has strict permissions protecting the RAW_PRD database, there is less danger of breaking production models. So we use our own custom schema name modified from the approach of the GitLab Data Team.

In production, each schema is just the custom schema name without any prefix. In non-production environments, dbt developers use their own custom schema based on their name: dbt_username.

Examples

User personae

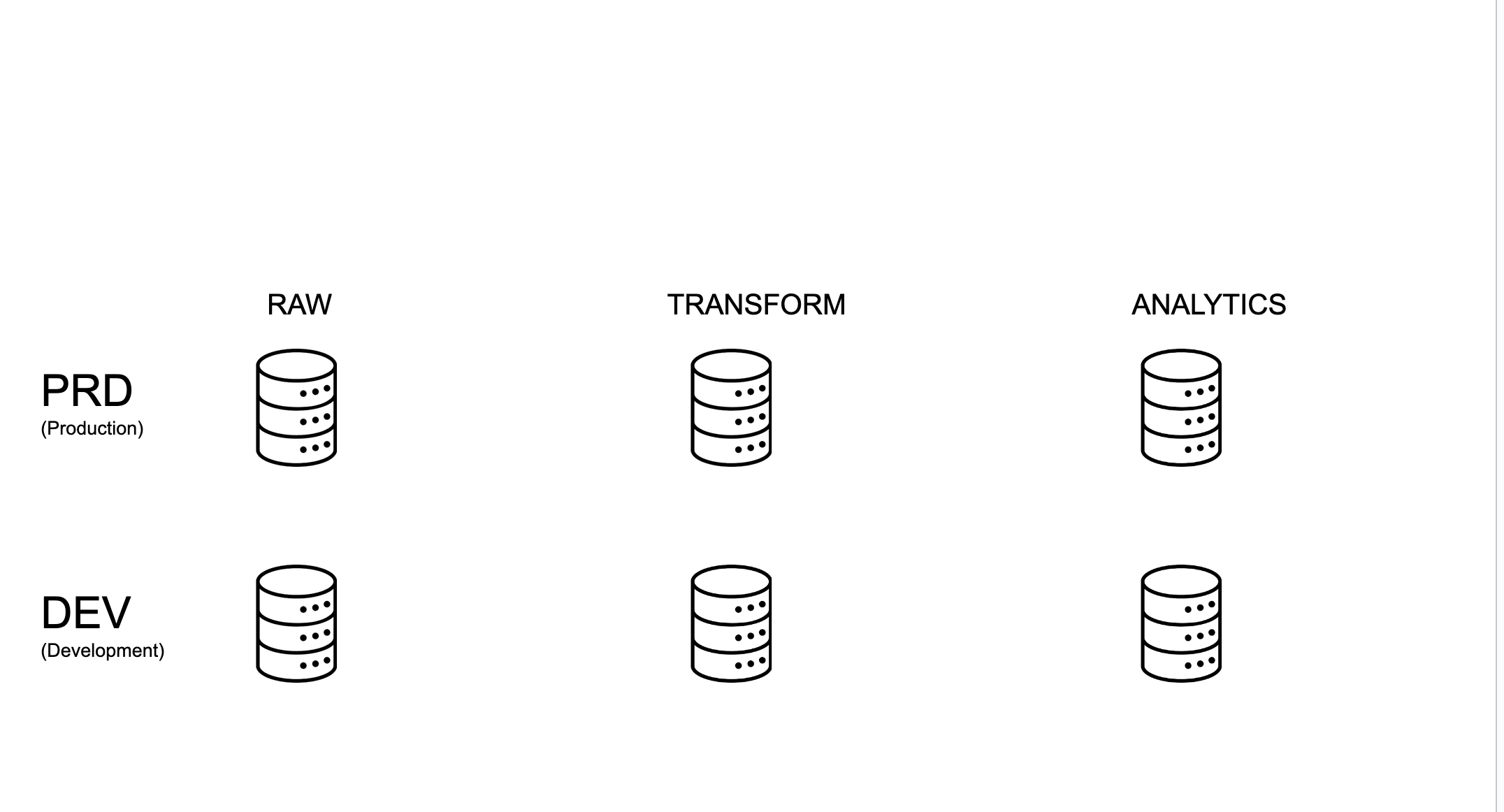

To make the preceding more concrete, let's consider the six databases, RAW, TRANSFORM, and ANALYTICS, for both DEV and PRD:

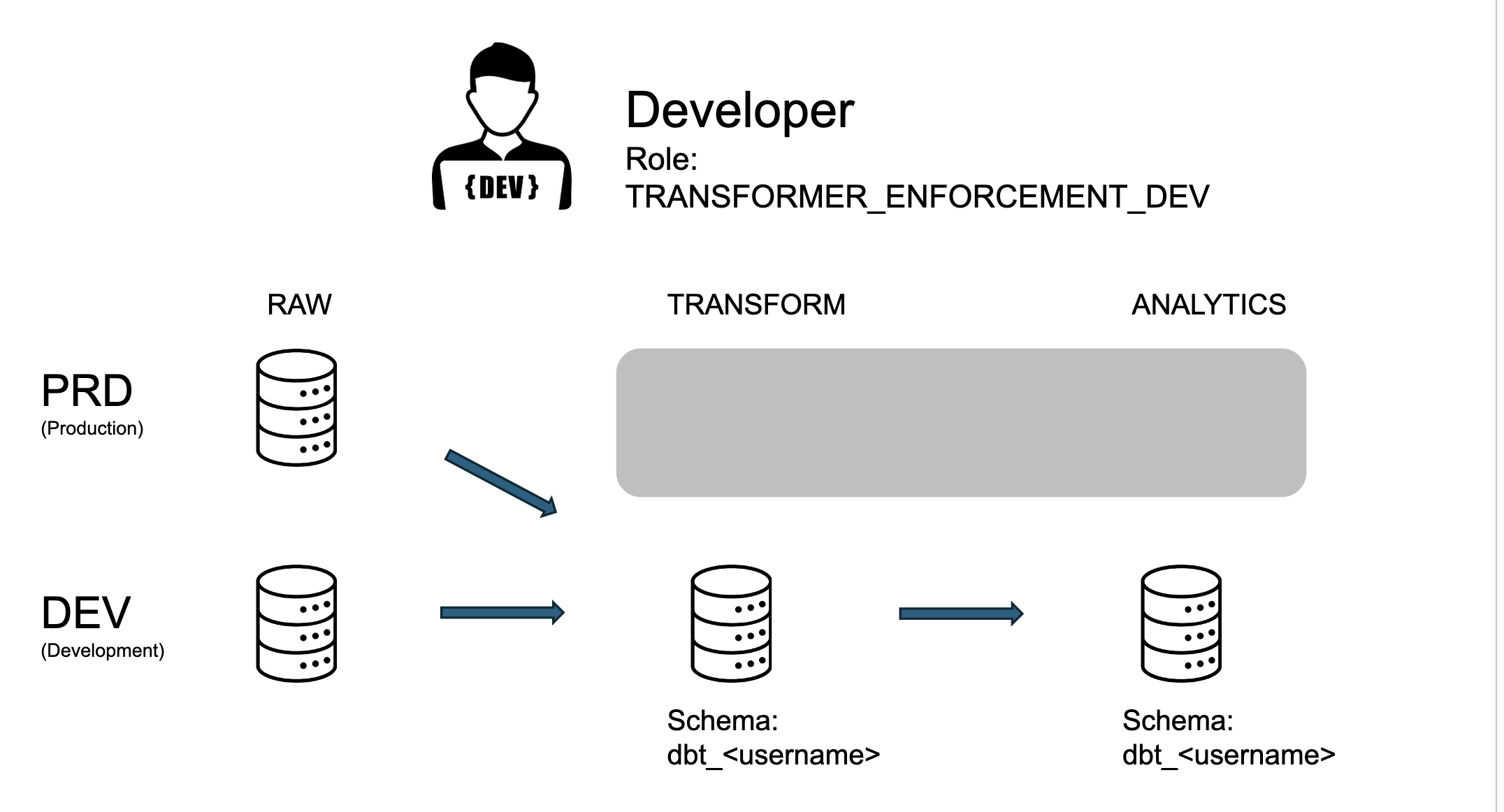

If you are a developer, you are doing most of your work in TRANSFORM_DEV and ANALYTICS_DEV, assuming the role TRANSFORMER_DEV. However, you also have the ability to select the production data from RAW_PRD for your development. So your data access looks like the following:

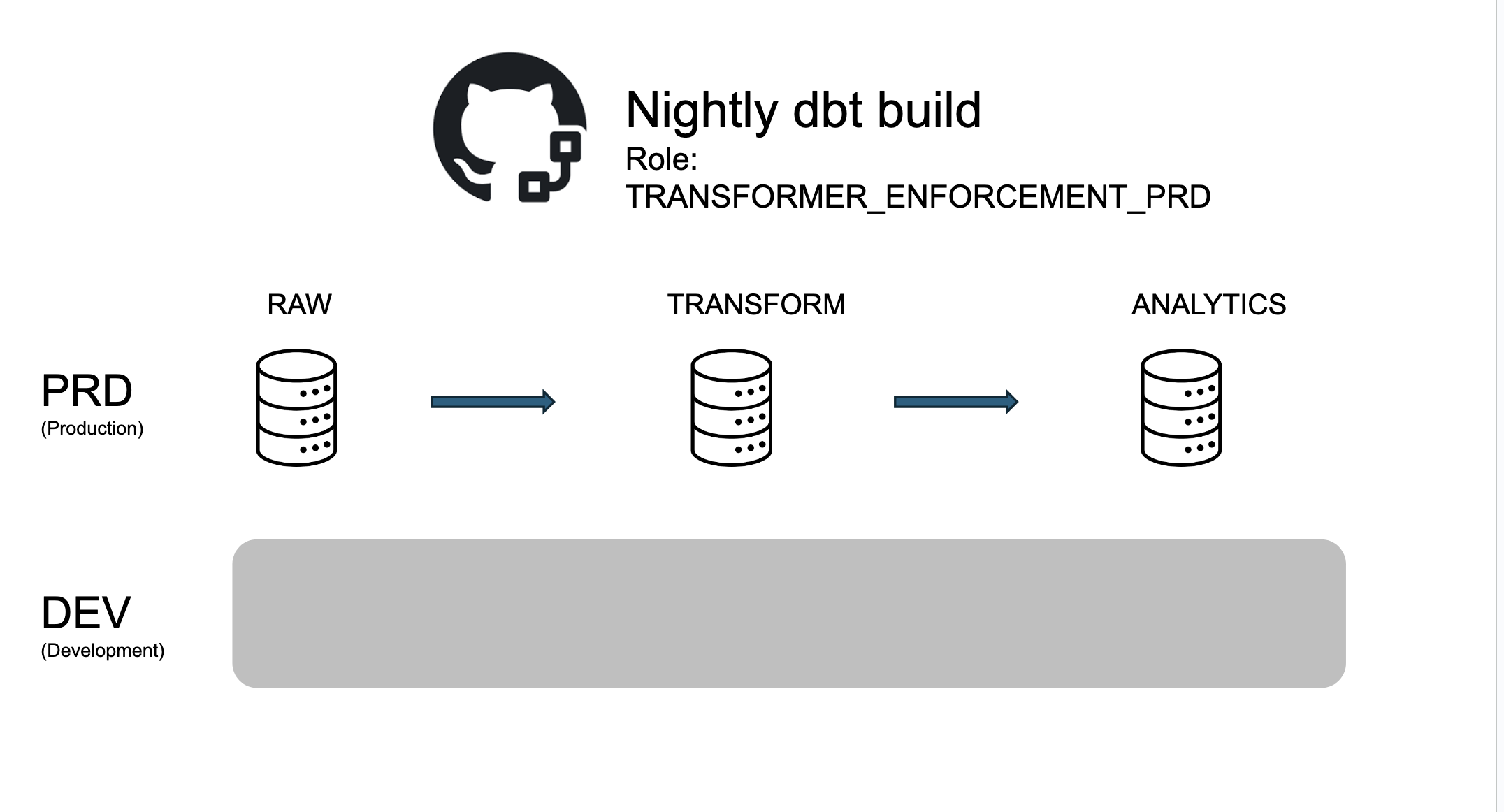

Now let's consider the nightly production build. This service account builds the production models in TRANSFORM_PRD and ANALYTICS_PRD based on the raw data in RAW_PRD. The development environment effectively doesn't exist to this account, and data access looks like the following:

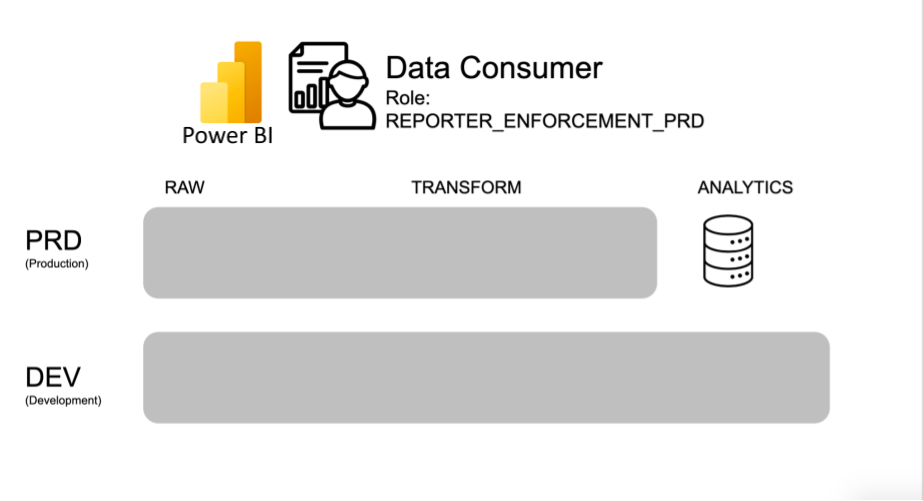

Finally, let's consider an external consumer of a mart from PowerBI. This user has no access to any of the raw or intermediate models (which might contain sensitive data!). To them, the whole rest of the architecture doesn't exist, and they can only see the marts in ANALYTICS_PRD:

Scenario: adding a new data source

1. Write a new Python script (or configure an equivalent loading tool) for loading the data to Snowflake.
2. Assume the LOADER_DEV role and load the data into the RAW_DEV database.
3. Verify that the data was loaded and looks correct in Snowflake.
4. Schedule the Python script to run using the LOADER_PRD role and the RAW_PRD database. These data are now ready for dbt modeling.
5. Once the data is loaded to the RAW_PRD database, drop the data from the RAW_DEV database, it’s not needed anymore.

Scenario: creating a new dashboard

1. Create a branch and develop your new marts table (or modify an existing one) in ANALYTICS_DEV using your normal TRANSFORMER_DEV role.
2. Assume the REPORTER_DEV role with PowerBI and point it to your mart in ANALYTICS_DEV.
3. Once you are happy with your mart and dashboard, merge your branch to main.
4. Once the nightly job is done, your new mart will be built in ANALYTICS_PRD.
5. Assume the REPORTER_PRD role and point your PowerBI dashboard to the production mart.
